multi-turn golfveer met vulringen

multi-turn golfveren met geshimde uiteinden KS serie

Multi-turn golfveren met geshimde uiteinden hebben een vlakke ring aan elk uiteinde als steunring en zijn verkrijgbaar in piek-dal uitvoering.

Neem contact met ons op
Beschrijving

Multi-Turn Wave veren met Shim uiteindenbeschikken over een gespecialiseerde multi-coil structuur ontworpen voor stabiele elasticiteitsverhoudingen en precieze controle over de belasting. De bovenste en onderste lagen contact op de toppen en dalen, met het effectieve aantal spoelen zijn twee minder dan het totale aantal. Shim uiteinden zorgen voor een groter contactoppervlak, wat zorgt voor optimale structurele stabiliteit en een gelijkmatige verdeling van de belasting, terwijl gelokaliseerde spanningsconcentraties worden geminimaliseerd.

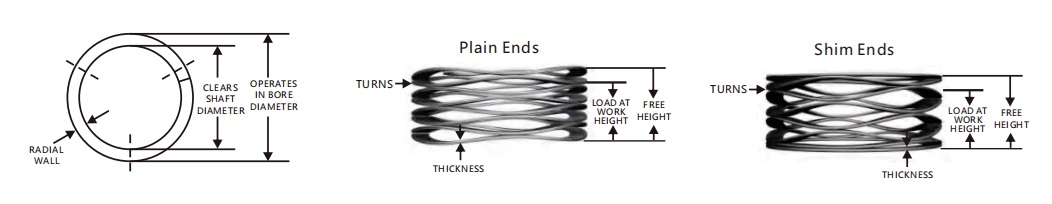

multi-turn wave spring with shim ends

Multi-turn golfveer met vulpunten

Belangrijkste kenmerken en voordelen

  • Structurele stabiliteit:Schuine uiteinden vergroten het contactoppervlak voor meer stabiliteit en een gelijkmatigere verdeling van de belasting.
  • Nauwkeurige belastingsregeling:De belasting is evenredig met de doorbuiging, voor een nauwkeurige respons onder verschillende bedrijfsomstandigheden.
  • Trillingsdemping:Dempt schokken en trillingen effectief, ideaal voor toepassingen met hoge frequenties en grote bewegingen.
  • Ontwerp met meerdere spoelen:Meerdere spoelen zorgen voor superieure elasticiteit, vervorming en hoge belastbaarheid.
  • Duurzaamheid:Vervaardigd van zeer sterke materialen zoals gelegeerd staal voor een langere levensduur en betrouwbaarheid op lange termijn.

Toepassingen

  • Opschortingssystemen voor auto’s
  • Mechanische apparatuur
  • Elektronische producten
  • Andere scenario’s met hoge prestaties en betrouwbaarheid

Multi-Turn Wave veren met Shim-uiteinden zijn de voorkeursoplossing voor veeleisende toepassingen die een stabiele elasticiteit, nauwkeurige belastingscontrole en effectieve trillingsdemping vereisen. Hun geavanceerde ontwerp en robuuste materialen leveren betrouwbare prestaties en een langere levensduur, waardoor ze onmisbaar zijn in de auto-industrie, de industrie en elektronische assemblages.

Technische parameters1
Artikelnr. Werkt in
Droeg Diameter (mm)		 Maakt Schacht vrij
Diameter (mm)		 Lading (N) Het werkhoogte (mm) Vrije Hoogte (mm) De lentetarief (N/mm)
KS018-L1 4.78 3.18 4.45 0.89 1.91 4.38
KS018-L2 4.78 3.18 4.45 1.17 2.54 3.24
KS018-L3 4.78 3.18 4.45 1.45 3.18 2.57
KS018-L4 4.78 3.18 4.45 1.73 3.81 2.14
KS018-L5 4.78 3.18 4.45 2.01 4.45 1.82
KS018-L6 4.78 3.18 4.45 2.29 5.08 1.59
KS018-L7 4.78 3.18 4.45 2.57 5.74 1.4
KS018-L8 4.78 3.18 4.45 3.12 7.01 1.14
KS018-L9 4.78 3.18 4.45 3.68 8.28 0.96
KS018-M1 4.78 3.18 9.78 1.19 2.26 15
KS018-M2 4.78 3.18 9.78 1.6 3.02 6.88
KS018-M3 4.78 3.18 9.78 2.01 3.78 5.5
KS018-M4 4.78 3.18 9.78 2.41 4.55 4.59
KS018-M5 4.78 3.18 9.78 2.82 5.31 3.92
KS018-M6 4.78 3.18 9.78 3.23 6.07 3.43
KS018-M7 4.78 3.18 9.78 3.63 6.81 3.08
KS018-M8 4.78 3.18 9.78 4.42 8.33 2.5
KS018-M9 4.78 3.18 9.78 5.16 9.86 2.5
KS021-L1 5.56 3.56 6.67 1.02 2.01 6.74
KS021-L2 5.56 3.56 6.67 1.35 2.67 5.04
KS021-L3 5.56 3.56 6.67 1.68 3.33 4.04
KS021-L4 5.56 3.56 6.67 2.03 3.99 3.41
KS021-L5 5.56 3.56 6.67 2.34 4.65 2.89
KS021-L6 5.56 3.56 6.67 2.69 5.31 2.56
KS021-L7 5.56 3.56 6.67 3.05 5.99 2.26
KS021-L8 5.56 3.56 6.67 3.71 7.32 1.86
KS021-L9 5.56 3.56 6.67 4.34 8.64 1.56
KS021-M1 5.56 3.56 20 1.3 2.03 27.16
KS021-M2 5.56 3.56 20 1.73 2.72 20.2
KS021-M3 5.56 3.56 20 2.16 3.38 16.42
KS021-M4 5.56 3.56 20 2.57 4.06 13.35
KS021-M5 5.56 3.56 20 3 4.75 11.41
KS021-M6 5.56 3.56 20 3.43 5.44 9.98
KS021-M7 5.56 3.56 20 3.86 6.1 8.94
KS021-M8 5.56 3.56 20 4.75 7.47 7.37
KS021-M9 5.56 3.56 20 5.51 8.81 6.06
KS025-L1 6.35 3.81 8.89 0.84 1.91 8.4
KS025-L2 6.35 3.81 8.89 1.27 2.54 7
KS025-L3 6.35 3.81 8.89 1.52 3.18 5.425
KS025-L4 6.35 3.81 8.89 1.91 3.81 4.725
KS025-L5 6.35 3.81 8.89 2.16 4.45 3.85
KS025-L6 6.35 3.81 8.89 2.41 5.08 3.325
KS025-L7 6.35 3.81 8.89 3.05 5.72 3.325
KS025-L8 6.35 3.81 8.89 3.56 6.99 2.625
KS025-L9 6.35 3.81 8.89 4.32 8.26 2.275
KS025-M1 6.35 3.81 22.23 0.94 1.91 23.1
KS025-M2 6.35 3.81 22.23 1.22 2.54 16.8
KS025-M3 6.35 3.81 22.23 1.65 3.18 14.525
KS025-M4 6.35 3.81 22.23 1.91 3.81 11.725
KS025-M5 6.35 3.81 22.23 2.29 4.45 10.325
KS025-M6 6.35 3.81 22.23 2.54 5.08 8.75
KS025-M7 6.35 3.81 22.23 3.05 5.72 8.4
KS025-M8 6.35 3.81 22.23 3.76 6.99 6.825
KS025-M9 6.35 3.81 22.23 4.45 8.26 5.775
KS031-L1 7.92 5.08 13.34 1.78 2.9 11.9
KS031-L2 7.92 5.08 13.34 2.44 3.86 9.45
KS031-L3 7.92 5.08 13.34 3 4.83 7.35
KS031-L4 7.92 5.08 13.34 3.68 5.79 6.3
KS031-L5 7.92 5.08 13.34 4.19 6.76 5.25
KS031-L6 7.92 5.08 13.34 4.95 7.72 4.9
KS031-L7 7.92 5.08 13.34 5.46 8.69 4.2
KS031-L8 7.92 5.08 13.34 6.65 10.62 3.325
KS031-L9 7.92 5.08 13.34 7.85 12.55 2.8
KS031-M1 7.92 5.08 26.67 1.83 2.9 25.025
KS031-M2 7.92 5.08 26.67 2.44 3.86 18.725
KS031-M3 7.92 5.08 26.67 3.12 4.83 15.75
KS031-M4 7.92 5.08 26.67 3.66 5.79 12.425
KS031-M5 7.92 5.08 26.67 4.47 6.76 11.725
KS031-M6 7.92 5.08 26.67 5 7.72 9.8
KS031-M7 7.92 5.08 26.67 5.77 8.69 9.1
KS031-M8 7.92 5.08 26.67 7.06 10.62 7.525
KS031-M9 7.92 5.08 26.67 8.53 12.55 6.65
KS037-L1 9.53 6.35 17.78 1.57 3.81 7.875
KS037-L2 9.53 6.35 17.78 2.49 5.08 6.825
KS037-L3 9.53 6.35 17.78 2.74 6.35 4.9
KS037-L4 9.53 6.35 17.78 3.43 7.62 4.2
KS037-L5 9.53 6.35 17.78 3.81 8.89 3.5
KS037-L6 9.53 6.35 17.78 4.67 10.16 3.325
KS037-L7 9.53 6.35 17.78 4.95 11.43 2.8
KS037-L8 9.53 6.35 17.78 5.79 12.7 2.625
KS037-L9 9.53 6.35 17.78 6.1 13.97 2.275
KS037-M1 9.53 6.35 31.12 2.06 3.81 17.675
KS037-M2 9.53 6.35 31.12 3.02 5.08 15.05
KS037-M3 9.53 6.35 31.12 3.68 6.35 11.725
KS037-M4 9.53 6.35 31.12 4.57 7.62 10.15
KS037-M5 9.53 6.35 31.12 5.13 8.89 8.225
KS037-M6 9.53 6.35 31.12 6.1 10.16 7.7
KS037-M7 9.53 6.35 31.12 6.65 11.43 6.475
KS037-M8 9.53 6.35 31.12 7.57 12.7 6.125
KS037-M9 9.53 6.35 31.12 8.31 13.97 5.425
KS043-L1 11.1 7.14 17.78 1.6 4.19 6.825
KS043-L2 11.1 7.14 17.78 2.36 5.59 5.425
KS043-L3 11.1 7.14 17.78 2.77 6.99 4.2
KS043-L4 11.1 7.14 17.78 3.63 8.38 3.675
KS043-L5 11.1 7.14 17.78 4.06 9.78 3.15
KS043-L6 11.1 7.14 17.78 4.95 11.18 2.8
KS043-L7 11.1 7.14 17.78 5.33 12.57 2.45
KS043-L8 11.1 7.14 17.78 6.1 13.97 2.275
KS043-L9 11.1 7.14 17.78 6.6 15.37 2.1
KS043-M1 11.1 7.14 35.56 2.08 4.19 16.8
KS043-M2 11.1 7.14 35.56 2.92 5.59 13.3
KS043-M3 11.1 7.14 35.56 3.61 6.99 10.5
KS043-M4 11.1 7.14 35.56 4.55 8.38 9.275
KS043-M5 11.1 7.14 35.56 5.03 9.78 7.525
KS043-M6 11.1 7.14 35.56 5.87 11.18 6.65
KS043-M7 11.1 7.14 35.56 6.48 12.57 5.775
KS043-M8 11.1 7.14 35.56 7.37 13.97 5.425
KS043-M9 11.1 7.14 35.56 8.1 15.37 4.9
KS050-L1 12.7 7.92 22.23 1.57 4.57 7.35
KS050-L2 12.7 7.92 22.23 2.29 6.1 5.775
KS050-L3 12.7 7.92 22.23 2.72 7.62 4.55
KS050-L4 12.7 7.92 22.23 3.45 9.14 3.85
KS050-L5 12.7 7.92 22.23 3.81 10.67 3.325
KS050-L6 12.7 7.92 22.23 4.57 12.19 2.975
KS050-L7 12.7 7.92 22.23 4.95 13.72 2.45
KS050-L8 12.7 7.92 22.23 5.59 15.24 2.275
KS050-L9 12.7 7.92 22.23 6.1 16.76 2.1
KS050-M1 12.7 7.92 44.45 1.65 4.57 15.225
KS050-M2 12.7 7.92 44.45 2.34 6.1 11.9
KS050-M3 12.7 7.92 44.45 2.9 7.62 9.45
KS050-M4 12.7 7.92 44.45 3.73 9.14 8.225
KS050-M5 12.7 7.92 44.45 4.11 10.67 6.825
KS050-M6 12.7 7.92 44.45 4.98 12.19 6.125
KS050-M7 12.7 7.92 44.45 5.26 13.72 5.25
KS050-M8 12.7 7.92 44.45 6.25 15.24 4.9
KS050-M9 12.7 7.92 44.45 6.71 16.76 4.375
KS050-H1 12.7 7.92 66.68 1.91 4.57 25.025
KS050-H2 12.7 7.92 66.68 2.79 6.1 20.125
KS050-H3 12.7 7.92 66.68 3.45 7.62 15.925
KS050-H4 12.7 7.92 66.68 4.24 9.14 13.65
KS050-H5 12.7 7.92 66.68 4.62 10.67 11.025
KS050-H6 12.7 7.92 66.68 5.49 12.19 9.975
KS050-H7 12.7 7.92 66.68 6.1 13.72 8.75
KS050-H8 12.7 7.92 66.68 7.11 15.24 8.225
KS050-H9 12.7 7.92 66.68 7.92 16.76 7.525
KS056-L1 14.27 9.53 22.23 2.03 4.95 7.525
KS056-L2 14.27 9.53 22.23 3.18 6.6 6.475
KS056-L3 14.27 9.53 22.23 3.43 8.26 4.55
KS056-L4 14.27 9.53 22.23 4.57 9.91 4.2
KS056-L5 14.27 9.53 22.23 4.83 11.56 3.325
KS056-L6 14.27 9.53 22.23 5.84 13.21 2.975
KS056-L7 14.27 9.53 22.23 6.6 14.86 2.625
KS056-L8 14.27 9.53 22.23 7.24 16.51 2.45
KS056-L9 14.27 9.53 22.23 8 18.16 2.275
KS056-M1 14.27 9.53 48.9 2.18 4.95 17.675
KS056-M2 14.27 9.53 48.9 3.12 6.6 14
KS056-M3 14.27 9.53 48.9 3.68 8.26 10.675
KS056-M4 14.27 9.53 48.9 4.75 9.91 9.45
KS056-M5 14.27 9.53 48.9 5.31 11.56 7.875
KS056-M6 14.27 9.53 48.9 6.43 13.21 7.175
KS056-M7 14.27 9.53 48.9 6.93 14.86 6.125
KS056-M8 14.27 9.53 48.9 8.08 16.51 5.775
KS056-M9 14.27 9.53 48.9 8.71 18.16 5.25
KS056-H1 14.27 9.53 80.02 2.36 4.95 30.8
KS056-H2 14.27 9.53 80.02 3.45 6.6 25.375
KS056-H3 14.27 9.53 80.02 4.19 8.26 19.775
KS056-H4 14.27 9.53 80.02 5.38 9.91 17.675
KS056-H5 14.27 9.53 80.02 6.22 11.56 15.05
KS056-H6 14.27 9.53 80.02 7.16 13.21 13.3
KS056-H7 14.27 9.53 80.02 8.2 14.86 12.075
KS056-H8 14.27 9.53 80.02 9.14 16.51 10.85
KS056-H9 14.27 9.53 80.02 10.36 18.16 10.325
KS062-L1 15.88 11.43 24.15 1.7 4.57 8.4
KS062-L2 15.88 11.43 25 2 6.1 6.125
KS062-L3 15.88 11.43 26.67 2.16 7.62 4.9
KS062-L4 15.88 11.43 26.67 2.69 9.14 4.2
KS062-L5 15.88 11.43 26.67 3.25 10.67 3.675
KS062-L6 15.88 11.43 26.67 4.19 13.72 2.8
KS062-L7 15.88 11.43 26.67 5.13 16.76 2.275
KS062-L8 15.88 11.43 26.67 6.05 19.81 1.925
KS062-M1 15.88 11.43 53.34 2.64 4.57 27.65
KS062-M2 15.88 11.43 53.34 3.3 6.1 19.075
KS062-M3 15.88 11.43 53.34 4.45 7.62 16.8
KS062-M4 15.88 11.43 53.34 5.23 9.14 13.65
KS062-M5 15.88 11.43 53.34 6.25 10.67 12.075
KS062-M6 15.88 11.43 53.34 8.05 13.72 9.45
KS062-M7 15.88 11.43 53.34 9.8 16.76 7.7
KS062-M8 15.88 11.43 53.34 11.53 19.81 6.475
KS062-H1 15.88 11.43 88.91 2.59 4.57 44.8
KS062-H2 15.88 11.43 88.91 3.43 6.1 33.25
KS062-H3 15.88 11.43 88.91 4.45 7.62 28
KS062-H4 15.88 11.43 88.91 5.21 9.14 22.575
KS062-H5 15.88 11.43 88.91 6.22 10.67 19.95
KS062-H6 15.88 11.43 88.91 8 13.72 15.575
KS062-H7 15.88 11.43 88.91 9.91 16.76 12.95
KS062-H8 15.88 11.43 88.91 11.81 19.81 11.025
KS075-L1 19.05 13.97 31.12 3.61 6.35 11.375
KS075-L2 19.05 13.97 31.12 4.75 8.46 8.4
KS075-L3 19.05 13.97 31.12 6.25 10.59 7.175
KS075-L4 19.05 13.97 31.12 7.24 12.7 5.775
KS075-L5 19.05 13.97 31.12 8.84 14.81 5.25
KS075-L6 19.05 13.97 31.12 11.33 19.05 4.025
KS075-L7 19.05 13.97 31.12 14.73 25.4 2.975
KS075-M1 19.05 13.97 57.79 4.04 6.35 25.025
KS075-M2 19.05 13.97 57.79 5.16 8.46 17.5
KS075-M3 19.05 13.97 57.79 6.86 10.59 15.4
KS075-M4 19.05 13.97 57.79 7.98 12.7 12.25
KS075-M5 19.05 13.97 57.79 9.68 14.81 11.2
KS075-M6 19.05 13.97 57.79 12.42 19.05 8.75
KS075-M7 19.05 13.97 57.79 16.48 25.4 6.475
KS075-H1 19.05 13.97 97.8 4.29 6.35 47.6
KS075-H2 19.05 13.97 97.8 5.46 8.46 32.55
KS075-H3 19.05 13.97 97.8 7.39 10.59 30.625
KS075-H4 19.05 13.97 97.8 8.51 12.7 23.275
KS075-H5 19.05 13.97 97.8 10.29 14.81 21.7
KS075-H6 19.05 13.97 97.8 13.36 19.05 17.15
KS075-H7 19.05 13.97 97.8 17.75 25.4 12.775
KS087-L1 22.23 15.24 53.34 2.97 6.35 15.75
KS087-L2 22.23 15.24 53.34 4.01 8.46 12.075
KS087-L3 22.23 15.24 53.34 5.26 10.59 9.975
KS087-L4 22.23 15.24 53.34 6.15 12.7 8.225
KS087-L5 22.23 15.24 53.34 7.29 14.81 7.175
KS087-L6 22.23 15.24 53.34 9.6 19.05 5.6
KS087-L7 22.23 15.24 53.34 12.65 25.4 4.2
KS087-M1 22.23 15.24 80.02 3.15 6.35 25.9
KS087-M2 22.23 15.24 80.02 4.17 8.46 18.9
KS087-M3 22.23 15.24 80.02 5.44 10.59 15.575
KS087-M4 22.23 15.24 80.02 6.4 12.7 13.3
KS087-M5 22.23 15.24 80.02 7.52 14.81 11.55
KS087-M6 22.23 15.24 80.02 9.78 19.05 8.75
KS087-M7 22.23 15.24 80.02 12.93 25.4 6.65
KS087-H1 22.23 15.24 111.13 4.22 6.35 52.15
KS087-H2 22.23 15.24 111.13 5.44 8.46 36.75
KS087-H3 22.23 15.24 111.13 7.06 10.59 31.5
KS087-H4 22.23 15.24 111.13 8.31 12.7 25.375
KS087-H5 22.23 15.24 111.13 10.03 14.81 23.275
KS087-H6 22.23 15.24 111.13 12.95 19.05 18.2
KS087-H7 22.23 15.24 111.13 17.02 25.4 13.65
KS100-L1 25.4 18.54 53.34 2.13 6.35 12.6
KS100-L2 25.4 18.54 53.34 2.74 8.46 9.275
KS100-L3 25.4 18.54 53.34 3.68 10.59 7.7
KS100-L4 25.4 18.54 53.34 4.19 12.7 6.3
KS100-L5 25.4 18.54 53.34 5.11 14.81 5.425
KS100-L6 25.4 18.54 53.34 6.55 19.05 4.2
KS100-L7 25.4 18.54 53.34 8.69 25.4 3.15
Technische parameters2



Artikelnr. Werkt in
Droeg Diameter (mm)		 Maakt Schacht vrij
Diameter (mm)		 Lading (N) Het werkhoogte (mm) Vrije Hoogte (mm) De lentetarief (N/mm)
KS100-L8 25.4 18.54 53.34 11.3 31.75 2.625
KS100-L9 25.4 18.54 53.34 13.18 38.1 2.1
KS100-L10 25.4 18.54 53.34 16.08 44.45 1.925
KS100-L11 25.4 18.54 53.34 18.03 50.8 1.575
KS100-M1 25.4 18.54 80.02 2.21 6.35 19.25
KS100-M2 25.4 18.54 80.02 2.87 8.46 14.35
KS100-M3 25.4 18.54 80.02 3.76 10.59 11.725
KS100-M4 25.4 18.54 80.02 4.45 12.7 9.625
KS100-M5 25.4 18.54 80.02 5.38 14.81 8.575
KS100-M6 25.4 18.54 80.02 7.01 19.05 6.65
KS100-M7 25.4 18.54 80.02 9.14 25.4 4.9
KS100-M8 25.4 18.54 80.02 11.48 31.75 4.025
KS100-M9 25.4 18.54 80.02 13.94 38.1 3.325
KS100-M10 25.4 18.54 80.02 16.51 44.45 2.8
KS100-M11 25.4 18.54 80.02 18.29 50.8 2.45
KS100-H1 25.4 18.54 111.13 3.33 6.35 36.75
KS100-H2 25.4 18.54 111.13 4.42 8.46 27.475
KS100-H3 25.4 18.54 111.13 5.77 10.59 23.1
KS100-H4 25.4 18.54 111.13 6.76 12.7 18.725
KS100-H5 25.4 18.54 111.13 8.1 14.81 16.625
KS100-H6 25.4 18.54 111.13 10.31 19.05 12.775
KS100-H7 25.4 18.54 111.13 13.74 25.4 9.45
KS100-H8 25.4 18.54 111.13 17.48 31.75 7.875
KS100-H9 25.4 18.54 111.13 20.65 38.1 6.3
KS100-H10 25.4 18.54 111.13 24.31 44.45 5.6
KS100-H11 25.4 18.54 111.13 27.51 50.8 4.725
KS112-L1 28.58 21.59 53.34 3.71 7.62 13.65
KS112-L2 28.58 21.59 53.34 4.72 10.16 9.8
KS112-L3 28.58 21.59 53.34 6.35 12.7 8.4
KS112-L4 28.58 21.59 53.34 7.49 15.24 6.825
KS112-L5 28.58 21.59 53.34 8.74 17.78 5.95
KS112-L6 28.58 21.59 53.34 9.96 20.32 5.075
KS112-L7 28.58 21.59 53.34 12.4 25.4 4.025
KS112-L8 28.58 21.59 53.34 16.74 33.02 3.325
KS112-L9 28.58 21.59 53.34 20.5 40.64 2.625
KS112-L10 28.58 21.59 53.34 25.83 50.8 2.1
KS112-M1 28.58 21.59 88.91 4.06 7.62 25.025
KS112-M2 28.58 21.59 88.91 5.13 10.16 17.675
KS112-M3 28.58 21.59 88.91 6.86 12.7 15.225
KS112-M4 28.58 21.59 88.91 8.08 15.24 12.425
KS112-M5 28.58 21.59 88.91 9.68 17.78 11.025
KS112-M6 28.58 21.59 88.91 10.85 20.32 9.45
KS112-M7 28.58 21.59 88.91 13.61 25.4 7.525
KS112-M8 28.58 21.59 88.91 17.98 33.02 5.95
KS112-M9 28.58 21.59 88.91 21.87 40.64 4.725
KS112-M10 28.58 21.59 88.91 27.64 50.8 3.85
KS112-H1 28.58 21.59 133.36 4.52 7.62 43.05
KS112-H2 28.58 21.59 133.36 5.82 10.16 30.625
KS112-H3 28.58 21.59 133.36 7.7 12.7 26.6
KS112-H4 28.58 21.59 133.36 8.89 15.24 21
KS112-H5 28.58 21.59 133.36 10.69 17.78 18.9
KS112-H6 28.58 21.59 133.36 11.94 20.32 15.925
KS112-H7 28.58 21.59 133.36 15.06 25.4 12.95
KS112-H8 28.58 21.59 133.36 19.99 33.02 10.15
KS112-H9 28.58 21.59 133.36 24.28 40.64 8.225
KS112-H10 28.58 21.59 133.36 30.53 50.8 6.65
KS125-L1 31.75 25.4 53.34 2.13 7.62 9.8
KS125-L2 31.75 25.4 53.34 2.87 10.16 7.35
KS125-L3 31.75 25.4 53.34 3.78 12.7 5.95
KS125-L4 31.75 25.4 53.34 4.37 15.24 4.9
KS125-L5 31.75 25.4 53.34 5.26 17.78 4.2
KS125-L6 31.75 25.4 53.34 5.77 20.32 3.675
KS125-L7 31.75 25.4 53.34 7.65 25.4 2.975
KS125-L8 31.75 25.4 53.34 10.03 33.02 2.275
KS125-L9 31.75 25.4 53.34 11.86 40.64 1.925
KS125-L10 31.75 25.4 53.34 15.01 50.8 1.575
KS125-M1 31.75 25.4 88.91 3.15 7.62 19.95
KS125-M2 31.75 25.4 88.91 4.19 10.16 14.875
KS125-M3 31.75 25.4 88.91 5.46 12.7 12.25
KS125-M4 31.75 25.4 88.91 6.43 15.24 10.15
KS125-M5 31.75 25.4 88.91 7.7 17.78 8.75
KS125-M6 31.75 25.4 88.91 8.66 20.32 7.7
KS125-M7 31.75 25.4 88.91 10.85 25.4 6.125
KS125-M8 31.75 25.4 88.91 14.66 33.02 4.9
KS125-M9 31.75 25.4 88.91 17.58 40.64 3.85
KS125-M10 31.75 25.4 88.91 22 50.8 3.15
KS125-H1 31.75 25.4 133.36 4.01 7.62 36.75
KS125-H2 31.75 25.4 133.36 5.33 10.16 27.65
KS125-H3 31.75 25.4 133.36 6.91 12.7 23.1
KS125-H4 31.75 25.4 133.36 8.13 15.24 18.725
KS125-H5 31.75 25.4 133.36 9.75 17.78 16.625
KS125-H6 31.75 25.4 133.36 11 20.32 14.35
KS125-H7 31.75 25.4 133.36 13.67 25.4 11.375
KS125-H8 31.75 25.4 133.36 18.21 33.02 8.925
KS125-H9 31.75 25.4 133.36 22.3 40.64 7.35
KS125-H10 31.75 25.4 133.36 28.02 50.8 5.775
KS137-L1 34.93 26.16 66.68 1.91 7.62 11.725
KS137-L2 34.93 26.16 66.68 2.51 10.16 8.75
KS137-L3 34.93 26.16 66.68 3.28 12.7 7
KS137-L4 34.93 26.16 66.68 3.94 15.24 5.95
KS137-L5 34.93 26.16 66.68 4.55 17.78 5.075
KS137-L6 34.93 26.16 66.68 5.23 20.32 4.375
KS137-L7 34.93 26.16 66.68 6.5 25.4 3.5
KS137-L8 34.93 26.16 66.68 8.66 33.02 2.8
KS137-L9 34.93 26.16 66.68 10.77 40.64 2.275
KS137-L10 34.93 26.16 66.68 13.46 50.8 1.75
KS137-M1 34.93 26.16 111.13 3.61 7.62 27.65
KS137-M2 34.93 26.16 111.13 4.72 10.16 20.475
KS137-M3 34.93 26.16 111.13 6.1 12.7 16.8
KS137-M4 34.93 26.16 111.13 7.14 15.24 13.65
KS137-M5 34.93 26.16 111.13 8.64 17.78 12.075
KS137-M6 34.93 26.16 111.13 9.75 20.32 10.5
KS137-M7 34.93 26.16 111.13 12.34 25.4 8.575
KS137-M8 34.93 26.16 111.13 16.05 33.02 6.475
KS137-M9 34.93 26.16 111.13 20.02 40.64 5.425
KS137-M10 34.93 26.16 111.13 24.94 50.8 4.375
KS137-H1 34.93 26.16 155.58 3.78 7.62 40.6
KS137-H2 34.93 26.16 155.58 4.8 10.16 29.05
KS137-H3 34.93 26.16 155.58 6.27 12.7 24.15
KS137-H4 34.93 26.16 155.58 7.29 15.24 19.6
KS137-H5 34.93 26.16 155.58 8.71 17.78 17.15
KS137-H6 34.93 26.16 155.58 9.91 20.32 14.875
KS137-H7 34.93 26.16 155.58 12.45 25.4 12.075
KS137-H8 34.93 26.16 155.58 16.41 33.02 9.45
KS137-H9 34.93 26.16 155.58 20.14 40.64 7.525
KS137-H10 34.93 26.16 155.58 25.4 50.8 6.125
KS150-L1 38.1 28.96 88.91 3.28 7.62 20.475
KS150-L2 38.1 28.96 88.91 4.17 10.16 14.875
KS150-L3 38.1 28.96 88.91 5.41 12.7 12.25
KS150-L4 38.1 28.96 88.91 6.27 15.24 9.975
KS150-L5 38.1 28.96 88.91 7.65 17.78 8.75
KS150-L6 38.1 28.96 88.91 8.56 20.32 7.525
KS150-L7 38.1 28.96 88.91 10.92 25.4 6.125
KS150-L8 38.1 28.96 88.91 14.35 33.02 4.725
KS150-L9 38.1 28.96 88.91 17.63 40.64 3.85
KS150-L10 38.1 28.96 88.91 22 50.8 3.15
KS150-M1 38.1 28.96 155.58 3.1 7.62 34.475
KS150-M2 38.1 28.96 155.58 4.01 10.16 25.375
KS150-M3 38.1 28.96 155.58 5.23 12.7 20.825
KS150-M4 38.1 28.96 155.58 6.12 15.24 16.975
KS150-M5 38.1 28.96 155.58 7.39 17.78 15.05
KS150-M6 38.1 28.96 155.58 8.23 20.32 12.95
KS150-M7 38.1 28.96 155.58 10.39 25.4 10.325
KS150-M8 38.1 28.96 155.58 13.72 33.02 8.05
KS150-M9 38.1 28.96 155.58 16.69 40.64 6.475
KS150-M10 38.1 28.96 155.58 21.21 50.8 5.25
KS150-H1 38.1 28.96 266.72 4.22 7.62 78.4
KS150-H2 38.1 28.96 266.72 5.49 10.16 57.05
KS150-H3 38.1 28.96 266.72 7.06 12.7 47.25
KS150-H4 38.1 28.96 266.72 8.36 15.24 38.675
KS150-H5 38.1 28.96 266.72 9.91 17.78 33.95
KS150-H6 38.1 28.96 266.72 11.25 20.32 29.4
KS150-H7 38.1 28.96 266.72 14.1 25.4 23.625
KS150-H8 38.1 28.96 266.72 18.44 33.02 18.375
KS150-H9 38.1 28.96 266.72 22.61 40.64 14.875
KS150-H10 38.1 28.96 266.72 28.42 50.8 11.9
KS175-L1 44.45 34.04 111.13 3.94 9.53 19.95
KS175-L2 44.45 34.04 111.13 5.08 12.7 14.525
KS175-L3 44.45 34.04 111.13 6.73 15.88 12.075
KS175-L4 44.45 34.04 111.13 7.87 19.05 9.975
KS175-L5 44.45 34.04 111.13 9.32 22.1 8.75
KS175-L6 44.45 34.04 111.13 10.54 25.4 7.525
KS175-L7 44.45 34.04 111.13 13.28 31.75 5.95
KS175-L8 44.45 34.04 111.13 16.21 38.1 5.075
KS175-L9 44.45 34.04 111.13 18.72 44.45 4.375
KS175-L10 44.45 34.04 111.13 21.44 50.8 3.85
KS175-M1 44.45 34.04 222.26 4.78 9.53 46.725
KS175-M2 44.45 34.04 222.26 6.2 12.7 34.125
KS175-M3 44.45 34.04 222.26 8 15.88 28.175
KS175-M4 44.45 34.04 222.26 9.5 19.05 23.275
KS175-M5 44.45 34.04 222.26 11.48 22.1 21
KS175-M6 44.45 34.04 222.26 12.83 25.4 17.675
KS175-M7 44.45 34.04 222.26 15.98 31.75 14.175
KS175-M8 44.45 34.04 222.26 19.51 38.1 11.9
KS175-M9 44.45 34.04 222.26 22.83 44.45 10.325
KS175-M10 44.45 34.04 222.26 26.06 50.8 8.925
KS175-H1 44.45 34.04 400.08 5.89 9.53 110.075
KS175-H2 44.45 34.04 400.08 7.98 12.7 84.7
KS175-H3 44.45 34.04 400.08 10.39 15.88 72.975
KS175-H4 44.45 34.04 400.08 12.24 19.05 58.8
KS175-H5 44.45 34.04 400.08 14.66 22.1 53.725
KS175-H6 44.45 34.04 400.08 16.54 25.4 45.15
KS175-H7 44.45 34.04 400.08 20.65 31.75 36.05
KS175-H8 44.45 34.04 400.08 24.89 38.1 30.275
KS175-H9 44.45 34.04 400.08 29.13 44.45 26.075
KS175-H10 44.45 34.04 400.08 33.45 50.8 23.1
KS200-L1 50.8 40.64 103.2 2.9 9.53 15.575
KS200-L2 50.8 40.64 104.1 3.5 12.7 11.55
KS200-L3 50.8 40.64 111.13 4.01 15.88 9.45
KS200-L4 50.8 40.64 111.13 4.55 19.05 7.7
KS200-L5 50.8 40.64 111.13 5.51 22.1 6.65
KS200-L6 50.8 40.64 111.13 6.17 25.4 5.775
KS200-L7 50.8 40.64 111.13 7.77 31.75 4.55
KS200-L8 50.8 40.64 111.13 9.27 38.1 3.85
KS200-L9 50.8 40.64 111.13 11 44.45 3.325
KS200-L10 50.8 40.64 111.13 12.45 50.8 2.975
KS200-M1 50.8 40.64 222.26 3.56 9.53 37.275
KS200-M2 50.8 40.64 222.26 4.67 12.7 27.65
KS200-M3 50.8 40.64 222.26 6.22 15.88 23.1
KS200-M4 50.8 40.64 222.26 7.06 19.05 18.55
KS200-M5 50.8 40.64 222.26 8.76 22.1 16.625
KS200-M6 50.8 40.64 222.26 10.03 25.4 14.525
KS200-M7 50.8 40.64 222.26 12.65 31.75 11.55
KS200-M8 50.8 40.64 222.26 15.06 38.1 9.625
KS200-M9 50.8 40.64 222.26 17.63 44.45 8.225
KS200-M10 50.8 40.64 222.26 20.32 50.8 7.35
KS200-H1 50.8 40.64 400.08 5 9.53 88.55
KS200-H2 50.8 40.64 400.08 6.55 12.7 65.1
KS200-H3 50.8 40.64 400.08 8.43 15.88 53.725
KS200-H4 50.8 40.64 400.08 9.88 19.05 43.575
KS200-H5 50.8 40.64 400.08 11.81 22.1 38.85
KS200-H6 50.8 40.64 400.08 13.34 25.4 33.075
KS200-H7 50.8 40.64 400.08 16.79 31.75 26.775
KS200-H8 50.8 40.64 400.08 19.84 38.1 21.875
KS200-H9 50.8 40.64 400.08 23.9 44.45 19.425
KS200-H10 50.8 40.64 400.08 27.15 50.8 16.975
